dovetail half lap joint

The dovetail half lap joint is a self-locking lap connection where the characteristic dovetail-shaped expansion of one member engages with a correspondingly shaped notch in the other member. The connection combines the properties of the lap joint with the positive locking of the dovetail.
This joint belongs to the family of dovetail connections and shows relationship to the Japanese koshikake-ari-tsugi and the European dovetailed lap joint. Comparable principles appear in various dovetail-shaped corner and T-connections.
The dovetail-shaped tenon is inserted into a correspondingly expanded notch. The characteristic geometry prevents withdrawal in the longitudinal direction through the conical expansion. The lap joint carries compression loads while the dovetail transfers tensile forces.
The dovetail half lap joint offers high tensile strength and self-locking properties without additional fasteners. The connection is positive and resistant to withdrawal. Manufacturing requires precise fitting and craftsmanship skills. The dovetail-shaped expansion leads to considerable cross-sectional weakening, especially with large cutouts. The connection is prone to splitting along the grain if the angle is too acute.
The mechanical function relies on the form-fit of the dovetail geometry. The connection transfers tensile forces effectively and offers high resistance to longitudinal displacement. Under transverse forces, however, it is susceptible to shearing.
The dovetail half lap joint finds traditional application in sills, purlins, and plates in roof and wall structures. In furniture making, it is used for load-bearing T-connections and corner joints. Modern applications include design furniture and traditional repair work.

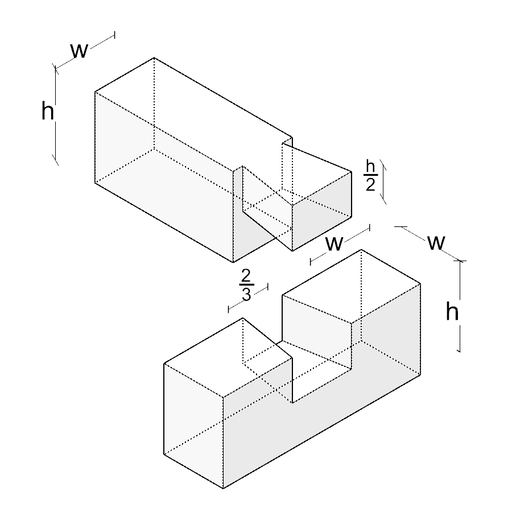

Manufacturing involves precise marking of the dovetail shape, careful sawing of the angled surfaces, and accurate chiseling of the notch. The dovetail should not exceed one-third of the beam height to avoid excessive weakening. Fit accuracy is crucial for load-bearing capacity.
Variations include the dovetail half lap joint with shoulder, where additional bearing surfaces improve shear strength, as well as various angles and proportions depending on application.
