pegged angled half lap joint

Joint family: lap (Blatt) Joining principle: rigid interlocks

Opened joint

Closed joint

Closed joint with dimensions

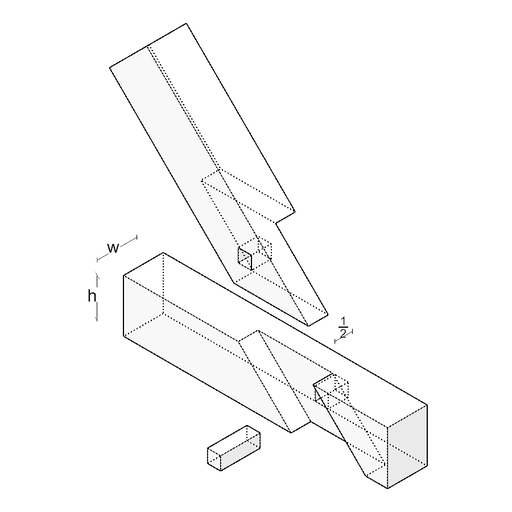

Opened joint with dimensions

Description

The pegged angled half lap joint is a reinforced lap connection where two members cross at an oblique angle and are secured against displacement by a wooden peg. The connection belongs to the lap joint family and creates a reinforced T-shaped crossing.
This joint shows relationship to pegged lap joints and angled tenon connections. Comparable principles appear in historical timber frame constructions and traditional bracing systems.
The characteristic feature is the oblique crossing of two members with symmetric notches, fixed by a transverse wooden peg. The pin prevents lateral displacement and transfers shear forces between the connecting partners. The oblique geometry enables connection of diagonal braces with horizontal or vertical members.
The pegged angled half lap joint offers increased strength compared to the unpinned variant through additional shear security of the wooden peg. The connection can transfer tensile and compressive forces and is resistant to displacement. However, the oblique design is more difficult to manufacture precisely than right-angle variants. The wooden peg can loosen with wood shrinkage and may require renewal.
The mechanical function relies on load distribution between the lap surfaces and the wooden peg. The notches carry compression and partial tension forces, while the pin absorbs shear forces and prevents displacement. The oblique geometry enables effective force transfer under diagonal loads.
The pegged angled half lap joint finds primary application in diagonal braces in historical timber frames, roof bracing systems, and oblique bracing in wall constructions. The connection is suitable for all types of bracing systems where diagonal members meet horizontal or vertical elements.
Manufacturing involves precise marking of oblique angles and careful cutting of the notches. The wooden peg is driven perpendicular to the connection plane after assembly. The peg hole should be slightly offset to create tensioning effect when driven.
Variations include different peg sizes according to load requirements and various angle degrees corresponding to structural needs.

Sources

Jasieńko, J. et al. (2014): Historical carpentry joints, Wiadomości Konserwatorskie, Journal of Heritage Conservation, S. 63-64 (angled tenons with pegging, braces)
Zwerger, K. (2015): Das Holz und seine Verbindungen, S. 98 (halved joint, pegging requirements)
Seike, K. (1977): The Art of Japanese Joinery, S. 100 (lap joint reinforcement requirements)

Properties

Geometry of elements
  • rectangular
Geometry of joint
  • T-joint
Orientation of the cross-section
  • vertical
Number of elements
3
Degrees of freedom
  • none
Absorbable loads
  • x (pressure)
  • x (tension)
  • y (pressure)
  • y (tension)
  • z (pressure)
  • z (tension)
  • a (moment)
  • b (moment)
  • c (moment)
Number of assembly steps
2
Connector used
with pin
Traditional use case
  • Structural carpentry
  • Fine woodworking
Project reference
  • Traditional architecture
  • Construction elements
  • Furniture pieces
