sloped cogged corner lap joint
Joint family: lap (Blatt) Joining principle: rigid interlocks
Opened joint
Closed joint
Closed joint with dimensions

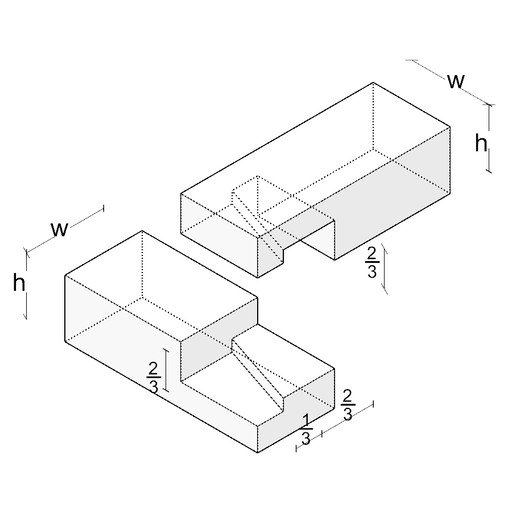

Opened joint with dimensions
Description
no text yet.
Sources
Properties
Geometry of elements
- rectangular
Geometry of joint
- L-joint
Orientation of the cross-section
- horizontal
Number of elements
2
Degrees of freedom
- z-axis
Absorbable loads
- x (pressure)
- x (tension)
- y (pressure)
- y (tension)
- z (pressure)
- a (moment)
- b (moment)
- c (moment)
Number of assembly steps
1
Connector used
without connector
Traditional use case
-
Project reference
-
Related joints
Related joints
-
beveled lap joint -
cross lap joint -
cogged lap joint -
half lap joint with stub tenon -
stop-splayed scarf joint -
sloped cogged corner lap joint -
lapped dovetail joint -
papped double dovetail joint -
half lap joint (I-joint) -
beveled half lap joint -
dovetail half lap joint -
oblique notched cross lap joint -
angled half-dovetail half lap joint with notched heel -
pegged angled half lap joint -
beveled lap joint with stub tenons -
spear point stop-splayed cogged lap joint with folding wedges -
obliqued double notch joint
