beveled half lap joint

The beveled half lap joint is a beveled lap connection where two members are joined through angled notches. The connection belongs to the lap joint family and creates a positive T-joint without additional fasteners.
This joint belongs to the broader family of lap connections and shows relationship to the straight half lap joint and the Japanese oire connection. Comparable principles appear in various beveled scarf joints in European and Japanese timber construction.

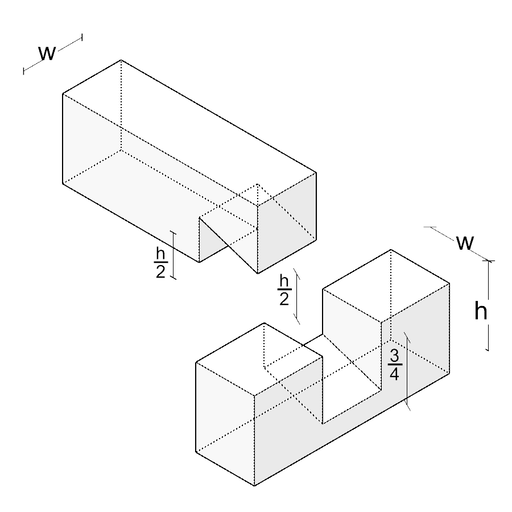

Both members are connected through angled notches, with the beveling of contact surfaces being the characteristic feature. The angled execution distinguishes this joint from the straight half lap and enables better force transfer under lateral loads.
The beveled half lap joint offers increased resistance to lateral forces compared to straight lap joints. The beveled surfaces improve force distribution and reduce stress concentrations. The connection is simple to manufacture and requires no additional fasteners. However, the beveling leads to greater cross-sectional weakening than straight lap joints. Like all lap joints, it is susceptible to shrinkage cracks.
The mechanical function relies on the form-fit of the beveled surfaces. The angled geometry improves transfer of transverse forces and provides higher strength against lateral displacement than straight lap joints.
The beveled half lap joint finds traditional application in joist systems and floor constructions where T-connections between main beams and secondary beams are required. In historical carpentry, it is used for purlin connections and frame joints. Modern applications include timber frame construction and traditional repair work.
Manufacturing involves precise marking of the bevel, careful sawing along the beveled line, and accurate chiseling of the material. The fit accuracy of the beveled surfaces is crucial for load-bearing capacity. Pegging is recommended for additional securing of the connection.
Variations of the beveled half lap include different bevel angles and combinations with toothed or hooked designs for further improvement of force transfer.
