oblique notched cross lap joint

The oblique notched cross lap joint is an angular lap connection with additional offset, where two members cross at an oblique angle and are connected through offset notches. The connection belongs to the lap joint and offset joint families and creates an X-shaped crossing.
This joint belongs to the broader family of oblique joints and shows relationship to step joints and the European brace joint. Comparable principles appear in diagonal connections in timber frame construction and in oblique bracing systems.

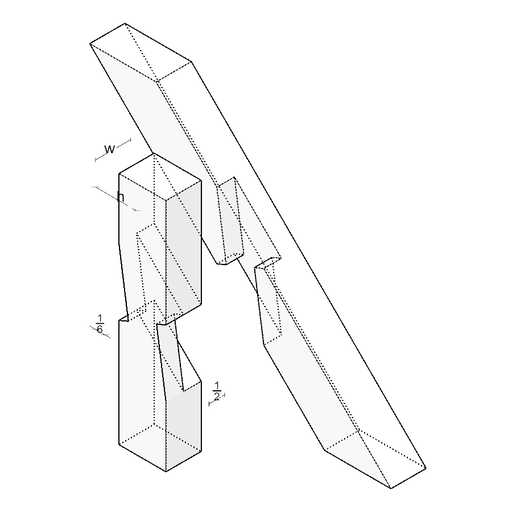

The characteristic geometry results from the oblique crossing of two members with additional end offset. Both members are notched, with the notches executed asymmetrically due to the oblique angle. The end offset provides additional bearing surface and improves force transfer under oblique loads.
The oblique notched cross lap joint offers better force transfer under oblique loads than right-angle cross lap joints. The end offset increases the bearing surface and improves load distribution. However, the oblique connection is more difficult to manufacture precisely than right-angle variants. Oblique lap joints are more susceptible to failure during earthquakes and dynamic loads than right-angle designs.
The mechanical function relies on the combination of lap joint and end offset. The oblique geometry enables transfer of diagonal forces, while the end offset provides additional shear and compression surfaces. The connection transfers shear forces effectively under oblique loading directions.
The oblique notched cross lap joint finds application in diagonal braces in roof and wall structures, in timber frame bracing systems, and in oblique connections between posts and struts. In furniture making, it is used for oblique bracing and chair leg connections.
Manufacturing requires precise marking of oblique angles and careful calculation of notch geometry. The asymmetric notches must be exactly matched to each other. The end offset is realized through additional shoulders or steps. Fit accuracy is crucial for structural integrity.
Variations include different offset forms, various angle degrees, and combinations with additional tabling or beveled shoulders for improved load distribution.
