cross lap joint

The cross lap joint is an X-connection where two components are placed perpendicular to each other and each notched to half their thickness. The connection creates a flush, level surface without additional wooden fasteners. Both components are equally weakened, creating symmetrical load distribution.
This joint belongs to the group of lap joints and shows similarities with the Japanese Ai-gaki and other halving connections. Comparable principles can be found in corner connections in sill construction and at crossing points in frame and timber frame constructions.

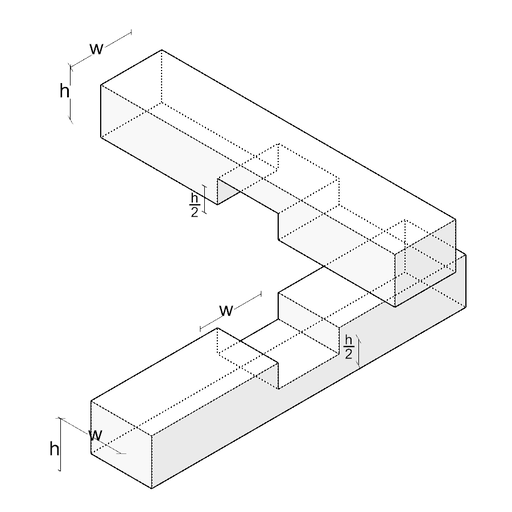

Both crossing components are notched to exactly half their thickness so they fit together flush. The notching extends across the entire width of each component. The characteristic property is the complete halving of both components, enabling a plane surface without overhang.
The cross lap joint offers simple and cost-effective production with standard tools. The flush surface is aesthetically pleasing and functional for visible connections. However, halving both components significantly reduces their load capacity. The joint is susceptible to shrinkage cracks and structural weakening, especially during earthquakes or dynamic loads.
Traditionally, this joint is used in furniture making for picture frames, door frames and window frames as well as in light timber frame constructions. In interior construction it finds application in decorative frames and bracing. Due to its structural weaknesses, it is mainly used for low loads.
Manufacturing involves exact marking of the notches, precise sawing to half the component thickness, and clean chiseling of the material. Fit accuracy is crucial for connection stability. For visible applications, careful surface finishing is required.

old text:
The cross-lap joint is a traditional wooden joint that has been used for centuries. It was originally used mainly in the construction of timber-framed houses, but it is still important in modern wooden construction. In the cross-lap joint, two pieces of wood are connected by cutting a notch that is 1/2 the thickness of the material and then shaping the two pieces of wood so that they fit together. A smooth surface and a strong connection should be created. By crossing the two pieces of wood, the joint becomes particularly stable and can withstand high loads. The applications of the cross-lap joint are diverse. It is mainly used in wooden construction, such as in the construction of roof trusses, beams and supports. It is also used in furniture making to create stable and durable furniture. Overall, the cross-lap joint is a proven wooden joint that convinces with its stability and durability. It has a long tradition in craftsmanship and is also widely used in modern wooden construction.
