obliqued double notch joint
Joint family: finger (Kamm), lap (Blatt) Joining principle: rigid interlocks
Opened joint
Closed joint
Closed joint with dimensions

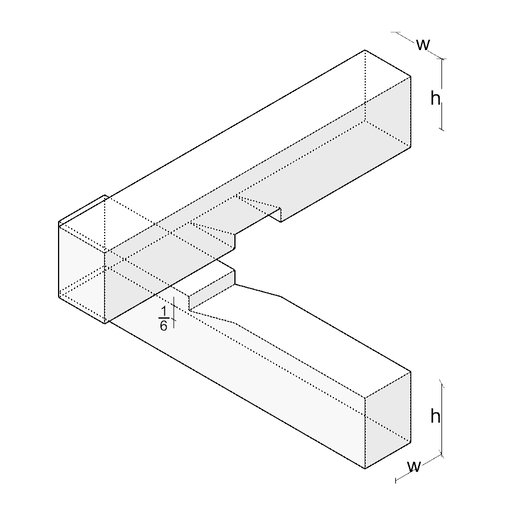

Opened joint with dimensions
Description
no text yet.
Sources
Properties
Geometry of elements
- rectangular
Geometry of joint
- X-joint
Orientation of the cross-section
- vertical
Number of elements
2
Degrees of freedom
- a-axis moment
- b-axis moment
- x-axis
- z-axis
Absorbable loads
- x (pressure)
- z (pressure)
- y (pressure)
- y (tension)
- c (moment)
Number of assembly steps
1
Connector used
without connector
Traditional use case
- Structural carpentry
- Fine woodworking
Project reference
- Traditional architecture
- Construction elements
