castle joint

The castle joint is an X-connection that joins four components in a central crossing. The connection uses interlocking tenons and notches that enable a positive interlocking without additional fasteners. The characteristic form resembles castle battlements, hence the name "Castle Joint".
This joint belongs to the group of tenon and finger joints and shows similarities with Japanese X-tenon connections and European cross-lap joints. Comparable principles can be found in complex frame connections and historic timber frame nodes where multiple timbers meet centrally.

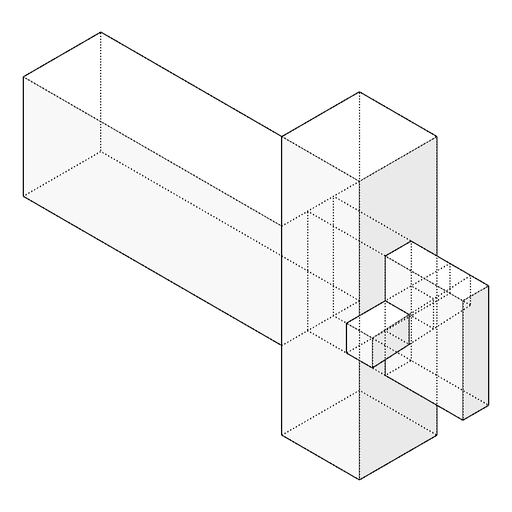

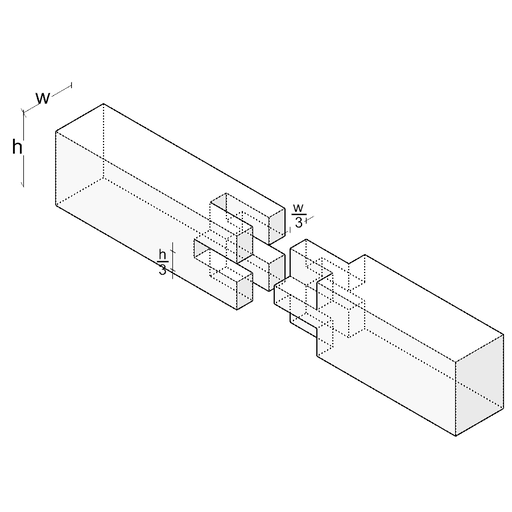

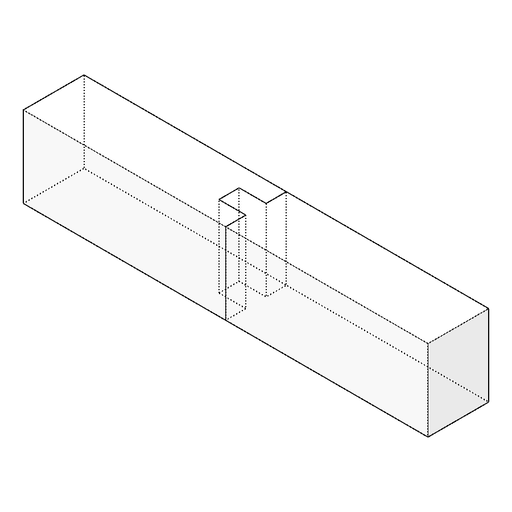

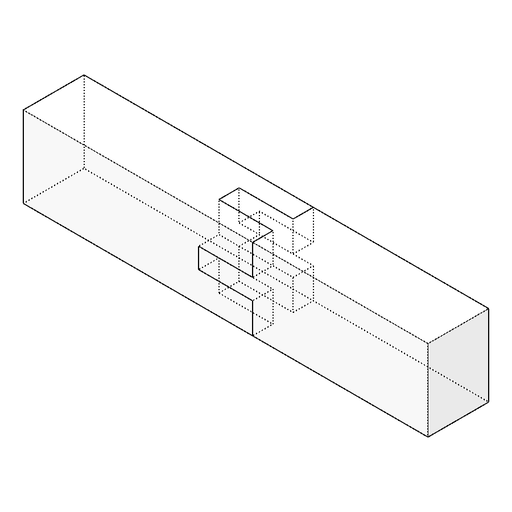

Each of the four components is notched to half its thickness and provided with finger-like tenons that engage into corresponding notches of the other components. The connection is made by laterally sliding the components together, where the offset tenons create a self-locking effect. Precise fitting of all components is crucial for stability.
The castle joint offers high rigidity in all directions through the multiple interlocking of components. The positive-fit construction effectively resists both tensile and compressive forces. The connection can be executed without glue, nails, or screws, allowing for disassembly and reassembly. However, it requires very precise machining and is labor-intensive.
Traditionally, this joint is used in high-quality furniture making for table frames, frames, and underframes. Modern applications are found in design objects and traditional architecture. Typical applications are chair connections, table legs with rails, and structural frame connections where four components meet centrally.
Manufacturing involves exact marking and sawing of tenons as well as precise chiseling of notches. Tolerances must be kept minimal, as even small deviations affect the fit. Hardwood is preferred as it provides the necessary precision and strength.
