half lap joint with open slot and fully shouldered tenon
Joint family: tenon (Zapfen) Joining principle: rigid interlocks
Opened joint
Closed joint
Closed joint with dimensions

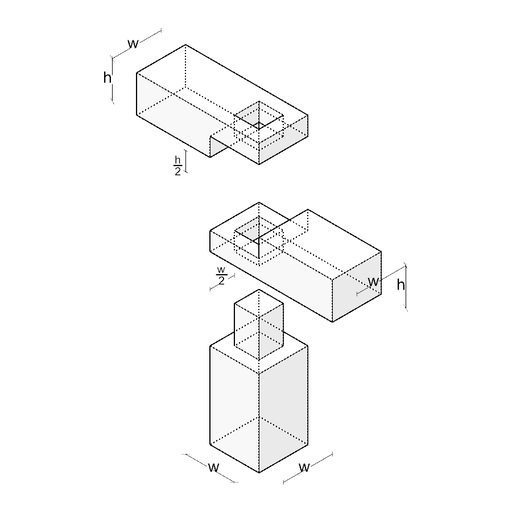

Opened joint with dimensions
Description
Sources
Properties
Geometry of elements
- rectangular
Geometry of joint
- T-joint
Orientation of the cross-section
- horizontal & vertical
Number of elements
3
Degrees of freedom
- z-axis
Absorbable loads
- c (moment)
- b (moment)
- a (moment)
- x (pressure)
- x (tension)
- y (tension)
- y (pressure)
- z (pressure)
Number of assembly steps
2
Connector used
without connector
Traditional use case
-
