haunched tenon joint
Joint family: tenon (Zapfen), shoulder (Hals) Joining principle: rigid interlocks
Opened joint
Closed joint

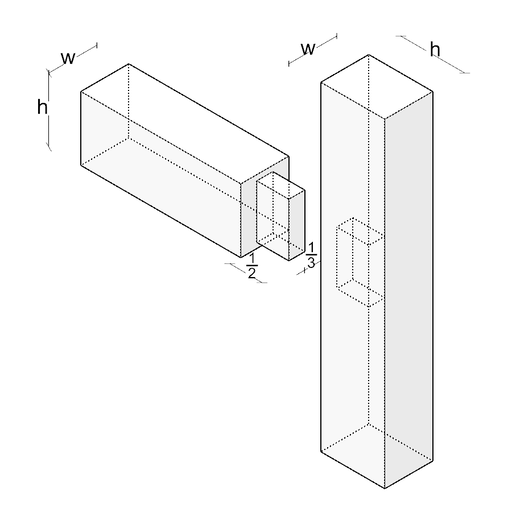

Closed joint with dimensions
Opened joint with dimensions
Description
no text yet.
Sources
Properties
Geometry of elements
- rectangular
Geometry of joint
- T-joint
Orientation of the cross-section
- vertical
Number of elements
2
Degrees of freedom
- x-axis
Absorbable loads
- x (pressure)
- y (pressure)
- y (tension)
- z (pressure)
- z (tension)
- a (moment)
- b (moment)
- c (moment)
Number of assembly steps
1
Connector used
without connector
Traditional use case
-
Project reference
-
