stopped fully housed dovetail small half lap joint
Joint family: dovetail (Schwalbens.) Joining principle: rigid interlocks
Opened joint
Closed joint
Closed joint with dimensions

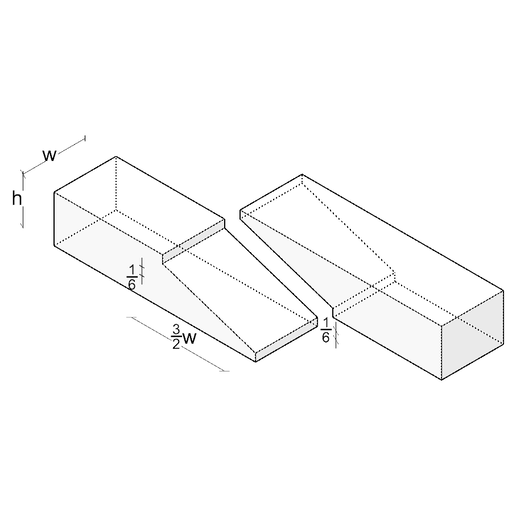

Opened joint with dimensions
Description
no text yet.
Sources
Properties
Geometry of elements
- rectangular
Geometry of joint
- T-joint
Orientation of the cross-section
- horizontal & vertical
Number of elements
2
Degrees of freedom
- z-axis
Absorbable loads
- x (pressure)
- x (tension)
- y (pressure)
- y (tension)
- z (pressure)
- b (moment)
- a (moment)
- c (moment)
Number of assembly steps
1
Connector used
without connector
Traditional use case
-
Project reference
-
Related joints
Related joints
-
blind dovetail joint -
lapped dovetail joint -
stopped fully housed dovetail small half lap joint -
papped double dovetail joint -
half-blind dovetail joint -
dovetail tenon joint -
dovetail half lap joint -
angled half-dovetail half lap joint with notched heel -
through dovetail tenon joint -
Tongue and groove joint with sliding dovetail batten
