butt joint with sliding dovetail batten

The butt joint with sliding dovetail batten is a surface connection where two boards or panels are butt-joined along their longitudinal edges and connected by a batten running perpendicular to the grain direction. The batten is slid into dovetail-shaped grooves milled transversely to the joint edges in both members. This connection creates a stable surface joint without visible fasteners on the top side, while the batten simultaneously prevents warping of the surface.
This joint belongs to the surface joint family and utilizes the principle of tongue and groove in combination with a dovetail form. It shows relationship to the simple cross batten and the Japanese technique of inserted splines. Unlike the continuous tongue-and-groove connection, a separate cross batten is used here that runs perpendicular to the grain direction and is secured against withdrawal by the dovetail-shaped groove.

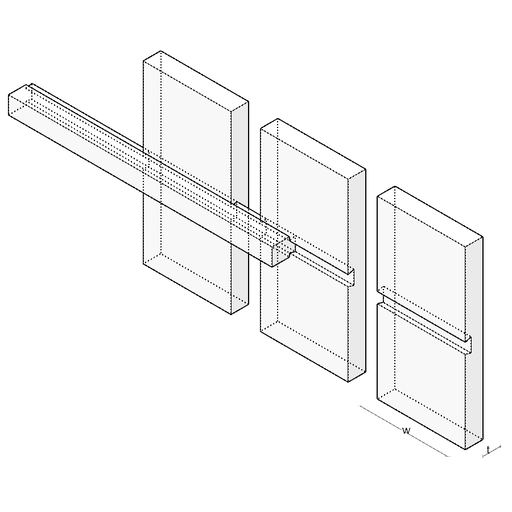

The geometry consists of two boards butted together, with dovetail-shaped grooves milled into the undersides perpendicular to the butt joint. The cross batten receives corresponding dovetail-shaped tenons at both ends that slide into the grooves. The trapezoidal widening of the tenons prevents withdrawal of the batten in perpendicular direction. The batten runs transverse to the grain direction of the boards and can be arranged at multiple intervals along the butt joint to stabilize the surface.
The butt joint with sliding dovetail batten enables the widening of surfaces with limited board width. The connection is invisible on the visible side and aesthetically appealing. The dovetail-shaped batten prevents warping and cupping of the surface through differential swelling and shrinking. The connection is reversible as the battens can be slid out from the side. It requires no additional fasteners such as glue or screws. However, fabrication is labor-intensive and requires precise milling of the dovetail-shaped grooves. The battens can develop play during wood shrinkage. The connection is susceptible to stresses between longitudinal and cross grain directions during extreme climate fluctuations.
Traditionally, this joint is primarily used in high-quality furniture making for table tops, cabinet doors, and shelves. It is employed when a wide surface must be assembled from multiple boards and a clean, seamless surface is desired. In instrument making it is used for soundboards. In antique furniture, this connection is frequently found on the underside of table tops, where the battens can simultaneously serve as attachment for the base frame.
Fabrication is carried out by precisely marking the dovetail-shaped grooves on the board undersides, accurately milling the grooves with corresponding dovetail angle, and precisely fashioning the battens with the corresponding tenons. The boards are laid butt together and the battens are slid from the side into the grooves. Fitting accuracy is crucial for the stability and durability of the connection. With too tight a fit, the batten can push the boards apart during insertion; with too loose a fit, the connection loses its stabilizing effect.
