lock miter joint 90° with tongue and groove
Joint family: miter (Gehrung) Joining principle: rigid interlocks
Opened joint
Closed joint
Closed joint with dimensions

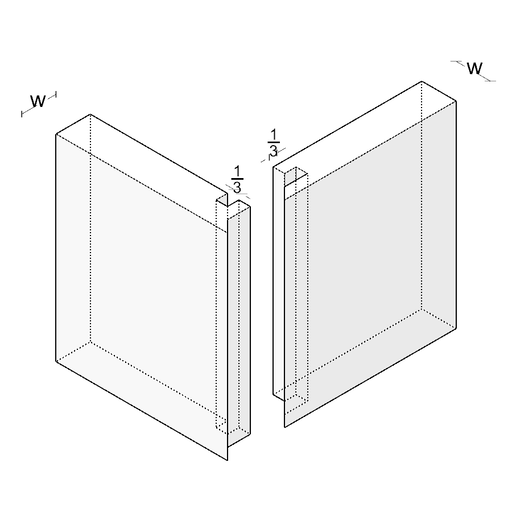

Opened joint with dimensions
Description
no text yet.
Sources
Properties
Geometry of elements
- rectangular
Geometry of joint
- L-joint
Orientation of the cross-section
- horizontal & vertical
Number of elements
2
Degrees of freedom
- x-axis
- y-axis
- z-axis
- a-axis moment
- b-axis moment
- c-axis moment
Absorbable loads
- y (pressure)
- x (pressure)
- c (moment)
Number of assembly steps
1
Connector used
without connector
Traditional use case
-
Project reference
-
Related joints
Related joints
Manufacturing techniques
